Product details
About This Product

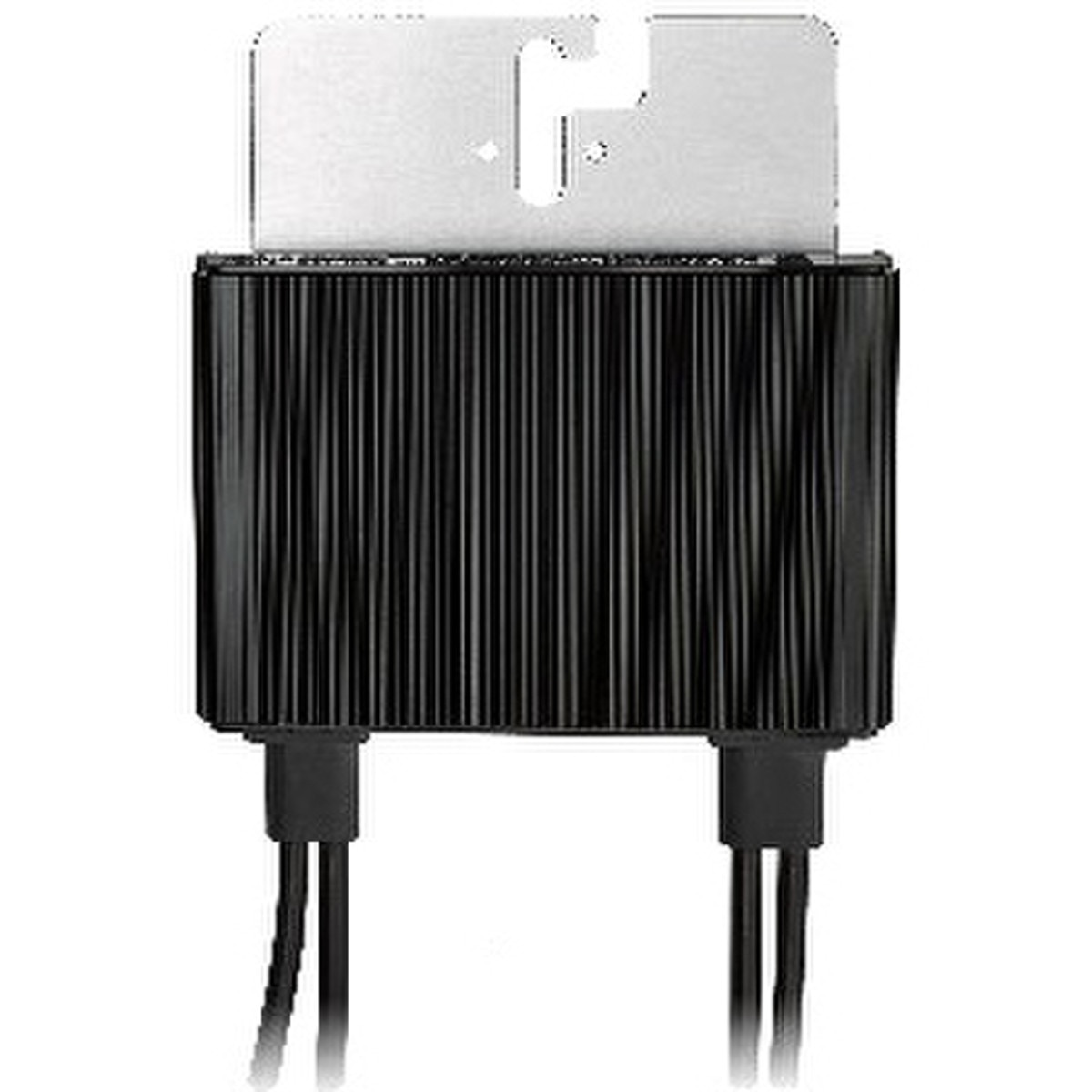

The SolarEdge S500B 500W/125V Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. It provides individual solar panel maximum power point tracking (MPPT), helping each connected module operate independently of the performance of other modules in the string.
The S500B-1GM4MBM supports solar modules rated up to 500W and features a 125V maximum output voltage rating. It is supplied with MC4 connectors for integration into compatible PV installations. This optimizer must be installed with qualifying SolarEdge inverters, with system sizing and optimizer quantities determined by the PV array configuration and inverter specifications.
Product Explainer Video
Introducing the New S-Series Power Optimizers for Residential Installations
Who This Product Suits
The SolarEdge S500B is suited to residential and light commercial solar installations using compatible SolarEdge inverter systems. It is particularly useful for arrays with partial shading, multiple roof orientations, or module-level performance differences.
It is intended for professional solar installers designing new SolarEdge optimized PV systems or replacing compatible optimizers in existing installations. Installers should verify inverter compatibility, module electrical characteristics, string design requirements, and applicable NEC requirements before installation.
Specifications Explained
- Manufacturer model: S500B-1GM4MBM, part of the SolarEdge S500B power optimizer family.
- Rated input power: 500W, identifying the maximum supported solar module power rating.
- Maximum output voltage: 125V DC, used when evaluating optimizer and string electrical compatibility.
- Module-level MPPT: Independently tracks the maximum power point of the connected solar module to reduce the impact of module mismatch.
- Connector type: Supplied with MC4 connectors for compatible module connections.
- Inverter compatibility: Requires qualifying SolarEdge inverters, including supported configurations identified by the manufacturer and distributor.
- System sizing: Optimizer quantities and array-to-inverter ratios must follow SolarEdge design requirements and approved DC-to-AC sizing limits.
- Installation: Requires appropriate string configuration, electrical protection, grounding, and compliance with applicable NEC requirements.
Downloads
Summary
The SolarEdge S500B 500W/125V Power Optimizer provides module-level power optimization for compatible SolarEdge inverter systems. With individual MPPT, MC4 connections, and a 500W module input rating, it is designed for optimized solar arrays where module-level performance management is required.
For reliable system integration, installers should confirm the approved inverter pairing, solar module compatibility, and SolarEdge string sizing requirements before ordering or installation.
Further Information From The Manufacturer
Solaredge Power Optimizer 500W/125V MUST BE PURCHASED in system level ratios with qualifying SolarEdge inverters (-USMNBE78, -USSKBEZ8) – ratio will vary, but is determined by PV array size and inverter watt class within recommended DC to AC limits (typically 1.5x or less) This product is supplied with MC4 connectors.
Specifications
| Manufacturer Warranty | 225 Years |
| Shipping Weight | 2 lb |
| Shipping Dimensions | 6 x 7 x 1.77 in |
About SolarEdge
SolarEdge is a global leader in optimiser-based solar systems, providing robust inverters, module-level electronics and advanced monitoring tools. Their residential and commercial platforms integrate solar, storage, EV charging and energy management into a unified ecosystem designed for system efficiency and long-term reliability.
