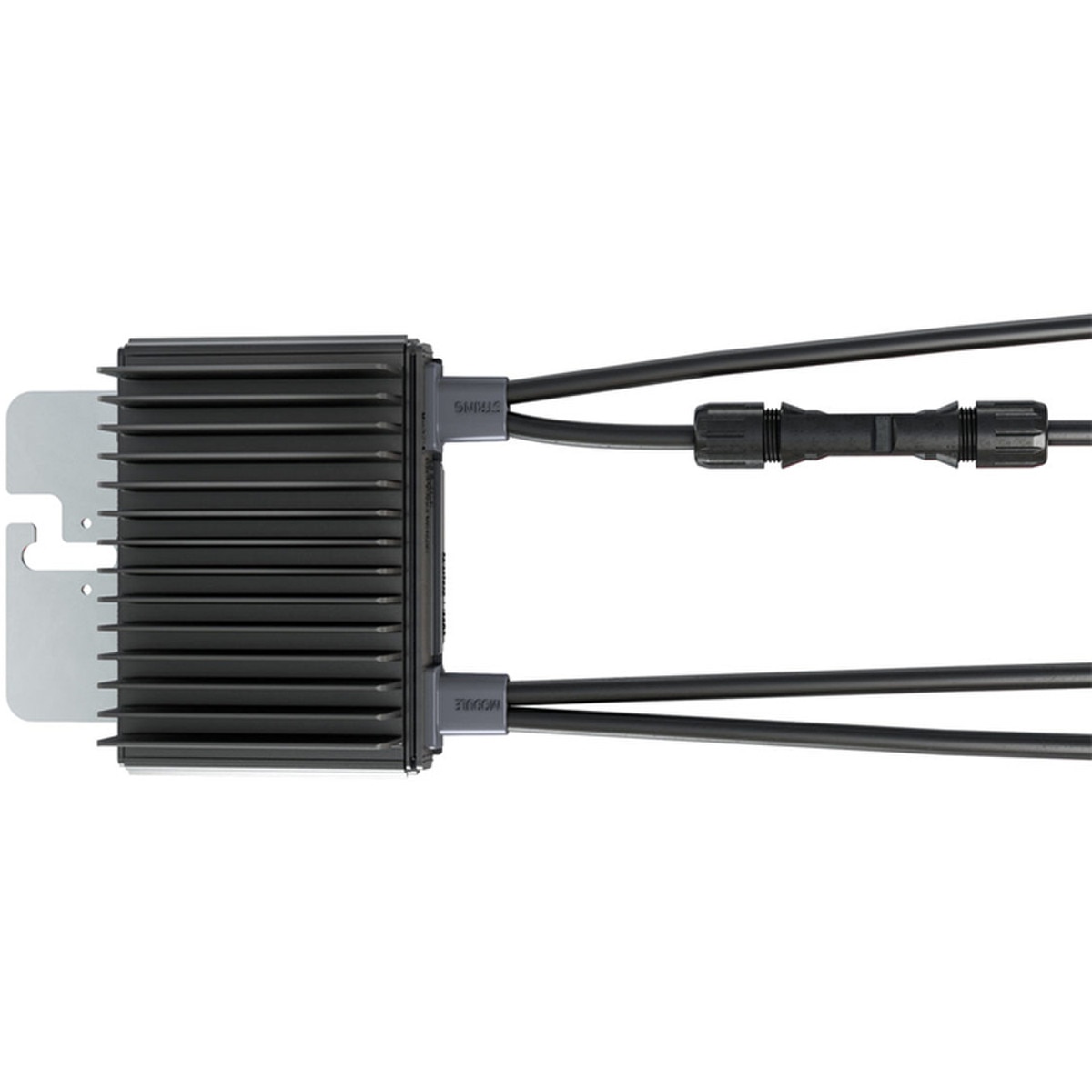

SolarEdge C651U 650W Commercial Power Optimizer

About This Product

The SolarEdge C651U 650W Commercial Power Optimizer is a C-Series module-level power optimizer designed for SolarEdge commercial three-phase PV systems in the US. It supports one PV module with up to 715W front-side maximum power and provides up to 650W DC output. The C651U provides module-level MPPT and incorporates SolarEdge SafeDC™, Sense Connect, and photovoltaic rapid shutdown functionality for compatible commercial installations.

Who This Product Suits

The SolarEdge C651U is intended for commercial rooftop solar projects using compatible SolarEdge 208V or 480V three-phase inverter platforms designed for the C651U. It is well suited to installers designing higher-power commercial arrays where module-level optimization, monitoring capability, rapid shutdown compliance, and higher string capacity are required. The optimizer is also a US domestic-content product for projects where qualifying domestic-content equipment is part of the system specification.

Specifications Explained

• 650W rated input and output power: Designed for modern high-power commercial PV modules, with support for modules up to 715W front-side maximum power under the manufacturer’s specified conditions.
• 80V maximum module input voltage: Supports PV modules with an open-circuit voltage up to 80V DC.
• 12.5-80V MPPT range: Provides module-level maximum power point tracking across a wide operating voltage range.
• 20A maximum module short-circuit current: Supports high-current PV modules, subject to SolarEdge’s module compatibility and design requirements.
• 24A maximum output current: The higher optimizer output-current capability supports increased commercial string power and can allow fewer strings in suitable system designs.
• 99.5% maximum efficiency: Designed to minimize conversion losses while performing module-level DC optimization.
• Rapid shutdown: Supports SolarEdge SafeDC™ and photovoltaic rapid shutdown requirements for NEC 2014 through NEC 2023 when installed as part of a compliant SolarEdge system.
• Sense Connect: Integrated connector temperature sensing provides additional monitoring at the optimizer output connection.
• Commercial inverter compatibility: Intended exclusively for specified SolarEdge commercial three-phase inverter and Synergy configurations. Compatibility should be confirmed during system design.

Summary

The SolarEdge C651U is a 650W C-Series commercial power optimizer for one PV module, supporting compatible modules up to 715W. It combines module-level MPPT with a 24A maximum output current, SafeDC™, Sense Connect, and NEC photovoltaic rapid shutdown support. For installers building compatible SolarEdge 208V or 480V commercial systems, it provides the module-level optimization and safety functions required by the C651U-based architecture.

Further Information From The Manufacturer

Domestic Content Compliant Optimizer. C-Series, PVRSS Compliant, for 1 module, input up to 715W, 80V, 20A, output up to 650W, 24A, output cables 3.0m (+) and 0.1m (-), input cables 2 x 1.4m, Sense Connect on output connector, Commercial Inverters Only 208/480V. To be used exclusively with xSE-SIN-USR0IBNS8, SE-DBL-US00IBNx4, SE-TRI-US00IBNx4 and xSESUK-USR0INNN8.” This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.
