Product details
About This Product

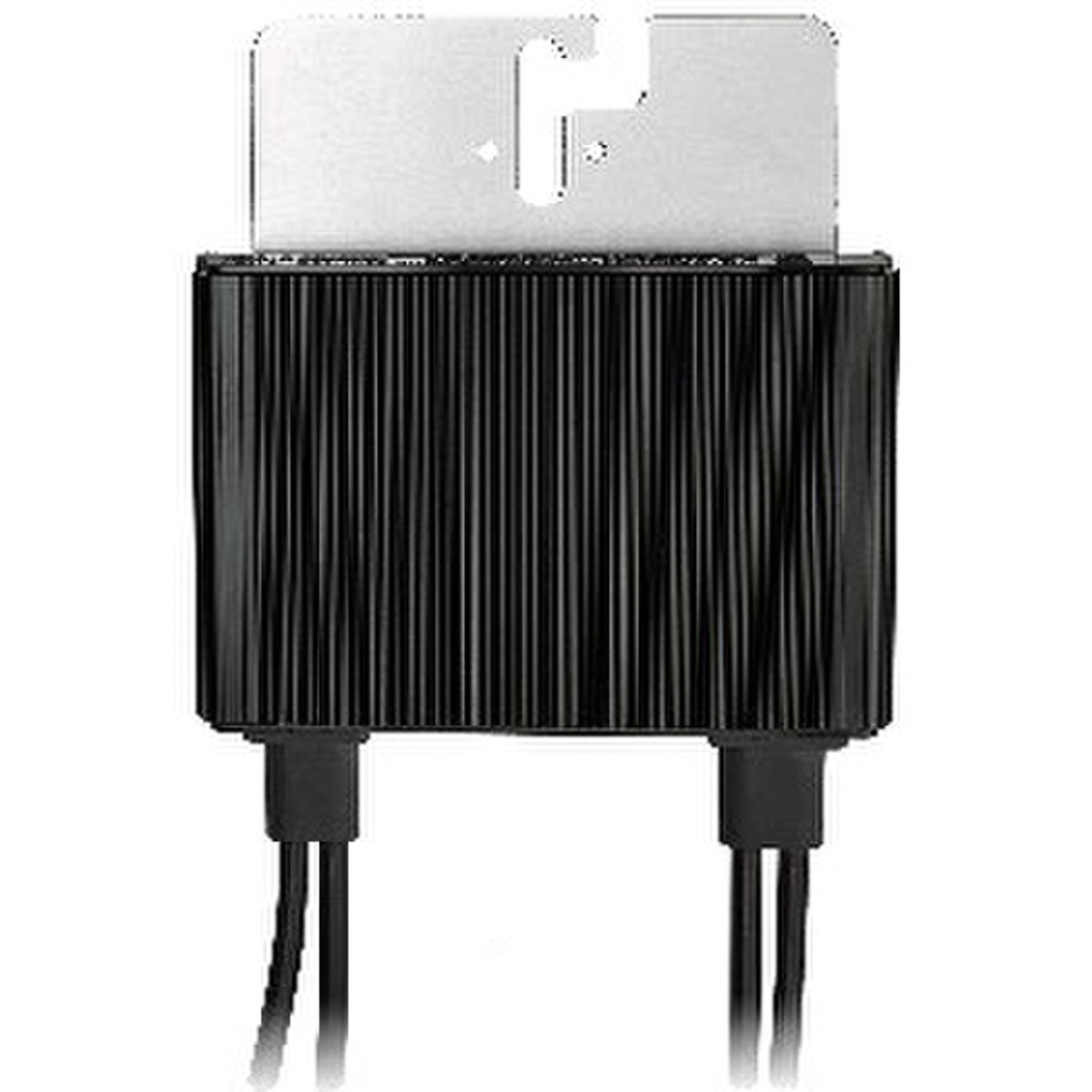

The SolarEdge S440 650W Power Optimizer is an S Series module-level power optimizer for use with compatible SolarEdge inverter systems in the US market. Manufacturer part number S440-1GM4MRMP is specifically rated for up to 650W DC input power with a 60V maximum input voltage and 15A maximum input current. It provides module-level maximum power point tracking (MPPT) and is supplied with MC4 connectors for integration into compatible PV arrays.
Product Explainer Video
Introducing the New S-Series Power Optimizers for Residential Installations
Who This Product Suits
The SolarEdge S440 is suited to residential and light commercial PV installations designed around compatible SolarEdge inverters and S Series optimizers. It is particularly useful where module-level optimization, monitoring capability, and SolarEdge rapid-shutdown functionality are required. System designers should confirm optimizer-to-inverter compatibility, minimum and maximum string lengths, module electrical characteristics, and permitted DC-to-AC sizing before installation.
Specifications Explained
- Rated input power: The S440-1GM4MRMP variant supports PV modules up to 650W DC.
- Maximum input voltage: 60V DC, so the connected module’s electrical characteristics must remain within the optimizer’s permitted input limits.
- Maximum input current: 15A, supporting modern higher-current PV modules when correctly matched.
- MPPT: Module-level maximum power point tracking allows each connected module to be individually optimized rather than relying solely on string-level performance.
- Efficiency: Up to 99.5% maximum efficiency and 98.6% weighted efficiency.
- Rapid shutdown: Designed as part of the SolarEdge PV rapid-shutdown architecture and compliant with applicable NEC rapid-shutdown requirements when installed in a correctly designed compatible system.
- Connections: MC4 input and output connectors are provided for standard PV wiring integration.
- System design: The optimizer must be used with a compatible SolarEdge inverter and installed within SolarEdge’s specified string-length and connected-power limits.
Downloads
Summary
The SolarEdge S440 is a module-level DC power optimizer designed for compatible SolarEdge PV systems. This S440-1GM4MRMP version supports up to 650W input, 60V DC maximum input voltage, and 15A maximum input current while providing individual-module MPPT and integration with SolarEdge’s system-level safety architecture. It is intended for properly engineered SolarEdge strings using compatible modules and inverters.
Further Information From The Manufacturer
SolarEdge S Series Optimizer rated for 650W/60V, 15A Max. Input Current
MUST BE PURCHASED in system level ratios
with qualifying SolarEdge inverters (-USMNBE78, -USSKBEZ8) – ratio will vary, but is determined by PV array size and inverter watt class within recommended DC to AC limits (typically 1.5x or less)
This product is supplied with MC4 connectors
| Shipping Weight | 1.5 lb |
| Shipping Dimensions | 6 x 7 x 2 in |
