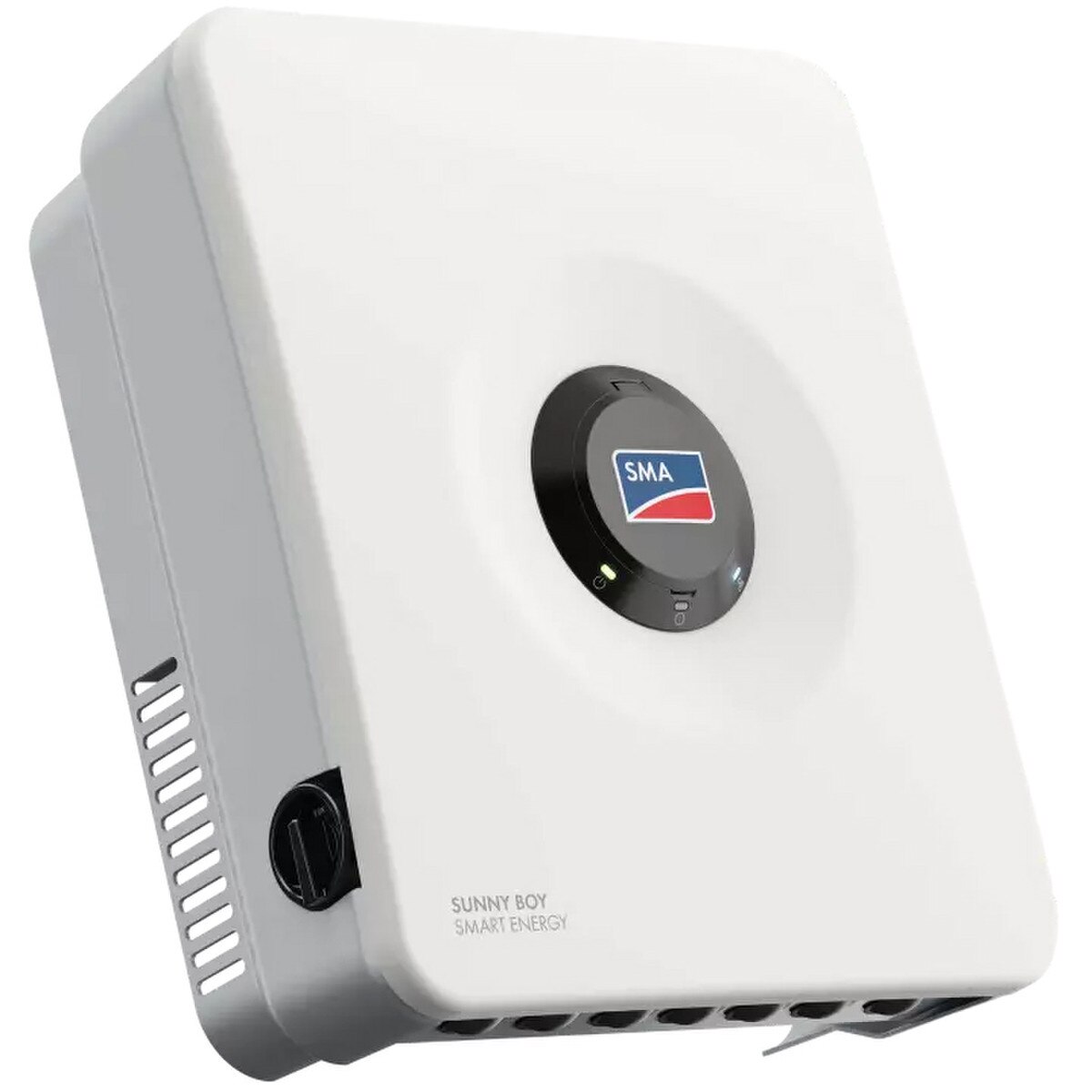

SMA Sunny Boy Smart Energy 3.8-US 3.8kW Single-Phase Hybrid Inverter

About This Product

The SMA Sunny Boy Smart Energy 3.8-US 3.8kW Single-Phase Hybrid Inverter is a residential hybrid inverter that combines PV generation and battery control in one unit. Rated at 3.84kW AC output, it is designed for 120/240V split-phase and compatible 208V applications and can be installed initially as a PV inverter with energy storage added where required. The SBSE3.8-US-50 includes three independent MPPT channels, integrated SMA ShadeFix, a SunSpec-certified rapid-shutdown transmitter, AFCI protection, WLAN communications and an integrated DC disconnect.

Who This Product Suits

The SMA Sunny Boy Smart Energy 3.8-US is suited to residential solar installations requiring a compact single-phase hybrid inverter with the option of DC-coupled battery storage. Its three MPPT channels are useful for arrays divided between different roof orientations or string configurations. It is also a practical choice for homeowners who want to install PV now while retaining the ability to integrate compatible battery storage and SMA energy-management equipment later. System design, battery compatibility, rapid shutdown and interconnection requirements should be confirmed by the installer for the specific project and local NEC/AHJ requirements.

Specifications Explained

• AC power rating: 3.84kW for residential grid-connected solar and storage applications.
• Hybrid architecture: Combines PV inverter and battery inverter functions in a single unit for compatible DC-coupled storage systems.
• Three MPPT channels: Provides additional string-design flexibility for arrays with different orientations or operating conditions.
• 200% DC/AC design capability: Supports PV array sizing up to 200% of the inverter AC rating when the complete system is designed within SMA’s electrical limits.
• SMA ShadeFix: Integrated yield-optimization technology helps the inverter find the most productive operating point when array conditions are affected by shading.
• Rapid shutdown support: Includes a SunSpec-certified rapid-shutdown transmitter for integration with compatible module-level rapid-shutdown equipment in NEC-compliant designs.
• Integrated safety features: Includes AFCI functionality and a DC disconnect.
• Communications: WLAN connectivity supports commissioning, monitoring and SMA’s connected energy-management platform.
• Warranty: Supplied with SMA’s standard 10-year inverter warranty, with extended warranty options available.

Summary

The SMA Sunny Boy Smart Energy 3.8-US is a 3.84kW single-phase hybrid inverter for US residential PV and energy-storage systems. It combines three MPPT channels, battery integration, 200% DC/AC design capability, SMA ShadeFix, rapid-shutdown support, AFCI protection and connected monitoring in one platform. For installers designing a smaller residential system that may include storage now or later, it provides a flexible foundation within the SMA Home Energy Solution.

Further Information From The Manufacturer

Sunny Boy Smart Energy 3.8-US – Hybrid PV+storage grid-tie inverter, backup ready, DC disconnect, UL1741SB, 120/240/208Vac, SunSpec RSD, AFCI, 3 MPPT, 200% DC/AC, SMA ShadeFix, Smart Connected, WLAN, Made in Germany

About SMA

SMA Solar Technology is a German manufacturer with decades of experience in solar inverter development. The company is known for engineering-focused design, strict quality standards and strong grid-integration expertise.

SMA inverters are widely installed across residential, commercial and utility-scale projects worldwide. Their product range is recognised for stable output, robust monitoring and long-term reliability in professional solar applications.
