About This Product

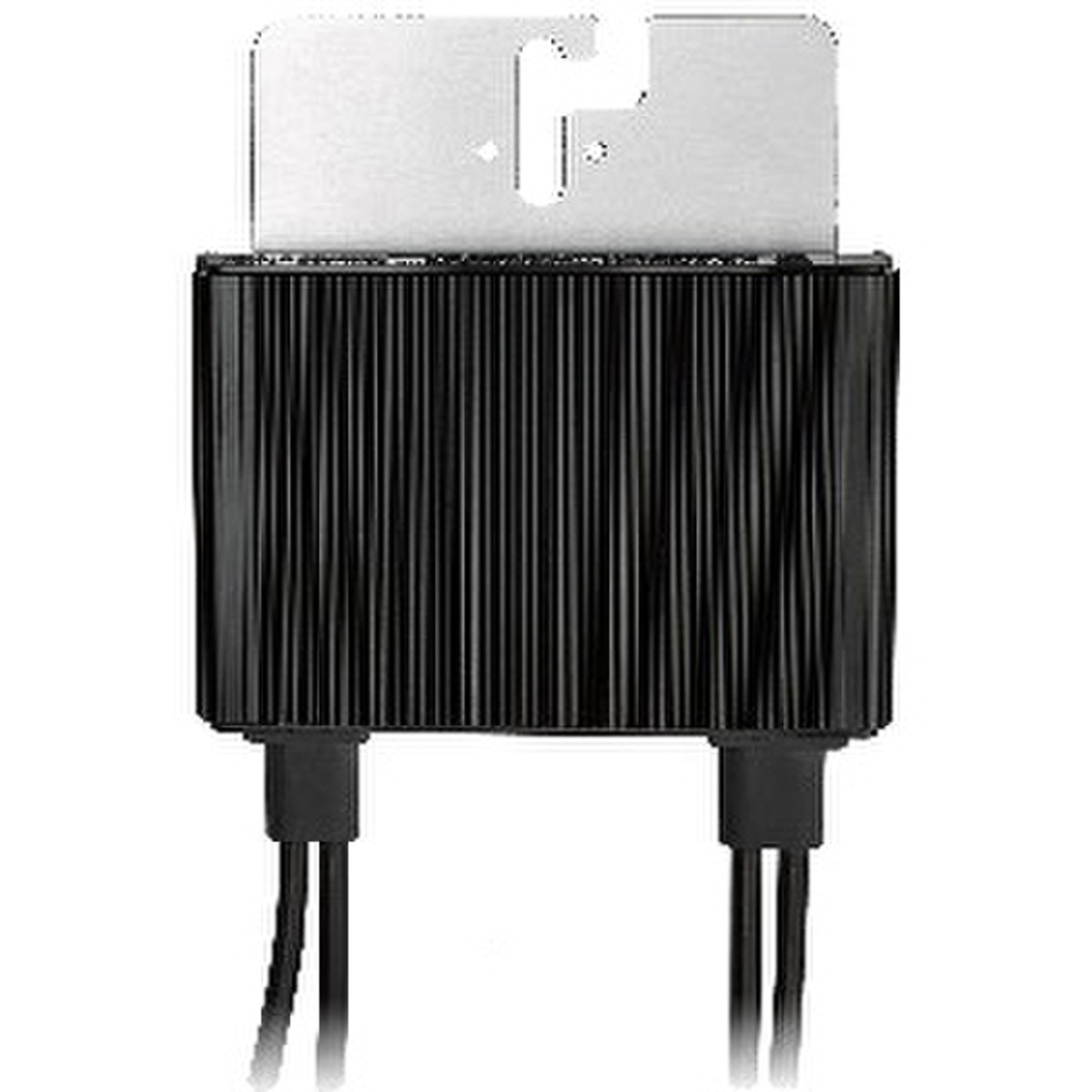

The SolarEdge S440 440W S Series Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems. Model S440-1GM4MRMU is rated for PV modules up to 440W, with a maximum input voltage of 60V DC and maximum input current of 14.5A. It is supplied with MC4 connectors for integration into compatible PV module wiring and provides module-level optimization as part of the SolarEdge system architecture.
Product Explainer Video
Introducing the New S-Series Power Optimizers for Residential Installations
Who This Product Suits
The SolarEdge S440 is intended for residential and light commercial PV installations using a compatible SolarEdge inverter and modules that fall within the optimizer’s electrical limits. It is suited to installers who need module-level power optimization, monitoring support, and SolarEdge SafeDC functionality. Module, inverter, string-length, and optimizer compatibility should be verified using current SolarEdge design requirements before installation.
Specifications Explained
- 440W rated module power: Designed for compatible PV modules with rated input power up to 440W.
- 60V maximum input voltage: The connected module must remain within the optimizer’s specified DC input-voltage limit.
- 14.5A maximum input current: Module current must be checked against this limit when selecting compatible panels.
- MC4 connectors: This S440-1GM4MRMU variant is supplied with MC4 connectors for compatible PV connections.
- Module-level optimization: Maximum power point tracking is performed individually at each connected module rather than only at the inverter.
- SolarEdge system integration: Designed to operate as part of a compatible SolarEdge optimized inverter system and support module-level monitoring and SafeDC functionality when correctly configured.
System design and installation should follow SolarEdge requirements and applicable NEC provisions, including the requirements relevant to rapid shutdown and PV source-circuit wiring.
Downloads
Summary
The SolarEdge S440 is a 440W S Series power optimizer for compatible SolarEdge PV systems. With a 60V maximum input voltage, 14.5A maximum input current, MC4 connectors, module-level optimization, and integration with SolarEdge monitoring and safety functions, it is a practical choice for appropriately matched residential and light commercial modules. Installers should confirm module, optimizer, inverter, and string compatibility before finalizing the array design.
Further Information From The Manufacturer
This product has transitioned from the SKU: SE-S440-1GM4MRM
SolarEdge S Series Optimizer rated for 440W/60V, 14.5A Max. Input Current
This product is supplied with MC4 connectors
| Shipping Weight | 1.5 lb |
| Shipping Dimensions | 6 x 7 x 2 in |
About SolarEdge
SolarEdge is a global leader in optimiser-based solar systems, providing robust inverters, module-level electronics and advanced monitoring tools. Their residential and commercial platforms integrate solar, storage, EV charging and energy management into a unified ecosystem designed for system efficiency and long-term reliability.
