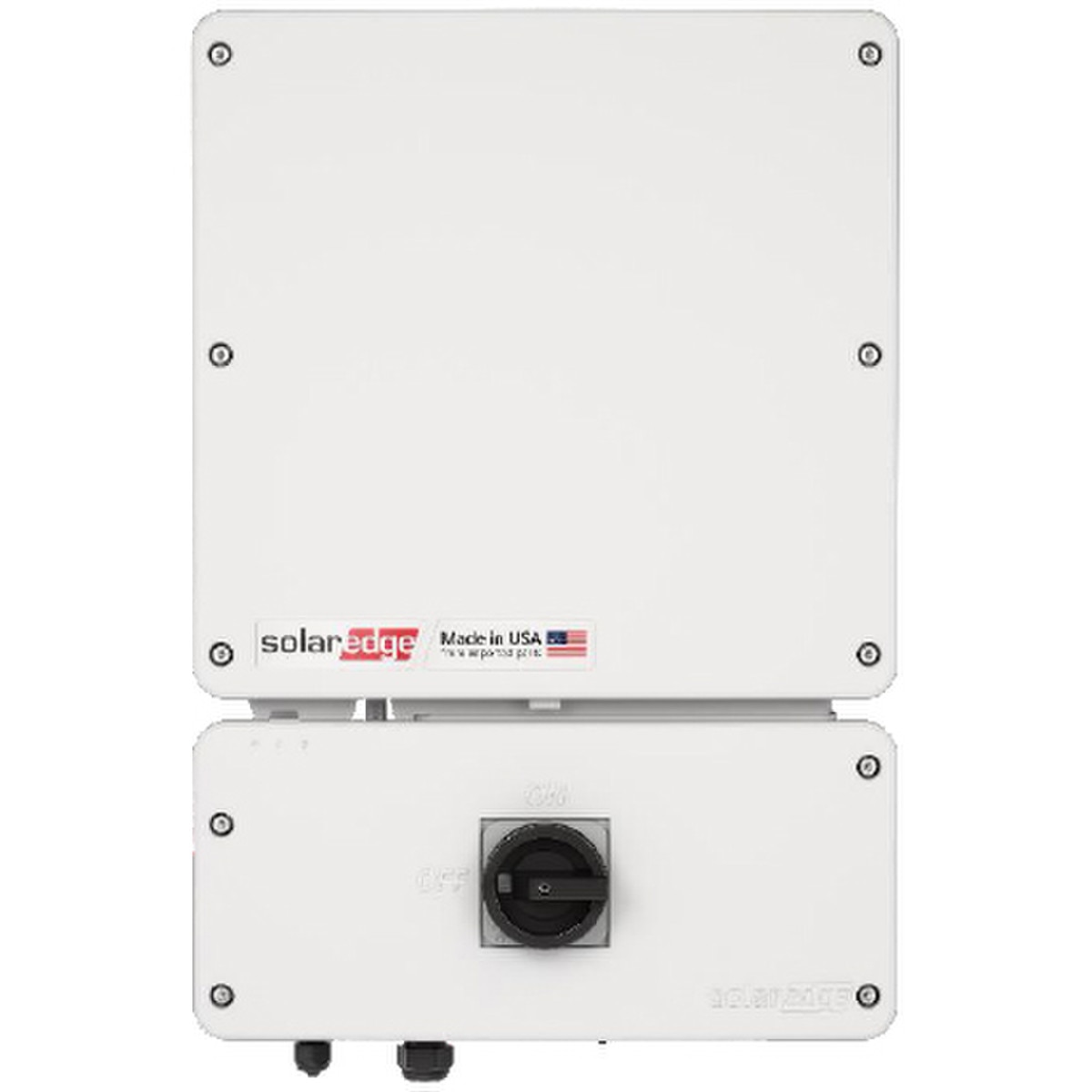

SolarEdge Home Hub SE11400H-US 11.4kW Single-Phase Inverter

About This Product

The SolarEdge Home Hub SE11400H-US 11.4kW Single-Phase Inverter is a SolarEdge Home Hub inverter for residential grid-connected solar, battery storage, and backup-ready applications in North America. This USE11400H-USSKBEZ8 version uses SolarEdge’s MultiRange single-SKU platform and can be commissioned by the installer for the required supported power class, with the SE11400H-US configuration providing up to 11.4kW AC output at 240V. It includes integrated consumption metering and ANSI C12.20 revenue-grade metering, built-in Wi-Fi for commissioning, and UL 1741 Power Control System functionality. The inverter is designed to operate with SolarEdge Power Optimizers and can integrate with the SolarEdge Home Battery 400V and SolarEdge Backup Interface for compatible storage and backup installations.

Who This Product Suits

This SolarEdge inverter suits US residential installations that use the SolarEdge optimized PV architecture and need a high-capacity single-phase inverter with provision for battery storage and backup. It is particularly useful for new SolarEdge Home installations where PV production, consumption monitoring, battery storage, and optional backup are intended to operate within one ecosystem. SolarEdge Home Battery 400V support allows up to three compatible batteries per inverter, while backup applications require the appropriate SolarEdge Backup Interface and system design. Final inverter power class, optimizer selection, conductor sizing, overcurrent protection, utility interconnection, and backup configuration should be determined by the system designer and installer in accordance with the approved plans, NEC requirements, and local AHJ and utility rules.

Specifications Explained

• Maximum AC output: 11.4kW at 240V when commissioned as the SE11400H-US power class; maximum continuous output current is 47.8A.
• 208V / 240V operation: Supports nominal 208V and 240V AC systems. Maximum AC output for the SE11400H-US configuration is 10.0kW at 208V and 11.4kW at 240V.
• PV input capacity: Supports up to 22.8kW of PV input at 240V or 20.0kW at 208V for the SE11400H-US configuration, subject to SolarEdge design requirements and compatible Power Optimizers.
• Battery integration: Supports the SolarEdge Home Battery 400V, with up to three compatible batteries per inverter and up to 12.5kW continuous battery charge/discharge power.
• Integrated metering: Built-in consumption metering and ANSI C12.20 revenue-grade metering support system monitoring and energy-management functions.
• Power Control System: UL 1741 PCS functionality supports compliant power-control designs where applicable.
• Rapid shutdown: Supports DC voltage rapid shutdown for PV and battery circuits in accordance with NEC 690.12 when installed as part of the specified SolarEdge system.
• Communications: Supports Wi-Fi, Ethernet and RS485, with additional SolarEdge communication options available for compatible system configurations.
• US certifications: Listed to applicable standards including UL 1741, UL 1741SA, UL 1741SB and UL 1699B, with IEEE 1547-2018 grid-interconnection support.
• Warranty: Supplied with a 12-year manufacturer warranty.

Summary

The SolarEdge Home Hub SE11400H-US is an 11.4kW-class single-phase inverter designed for SolarEdge optimized residential systems in the US. It combines PV conversion, integrated consumption and revenue-grade metering, battery connectivity, PCS functionality, rapid-shutdown support, and optional whole-home energy backup capability within the SolarEdge Home platform. For installers building a larger SolarEdge residential system with future or immediate battery storage requirements, it provides a single platform for PV, storage, monitoring, and compatible backup equipment.

Further Information From The Manufacturer

This product has transitioned from the SKU: SE-USE10000H-USMNBE78 SolarEdge : SE-USE11400H-USMNBE78 SolarEdge : SE-USE3800H-USMNBE78 SolarEdge : SE-USE5700H-USMNBE78 SolarEdge : SE-USE7600H-USMNBE78

Single Phase Home Hub inverter, 3.8kW-11.4kW Adjustable, 12.5kW Backup, w/ PCS certified Revenue Grade Metering and Consumption Monitoring, w/ Wi-Fi antenna. Domestic Content Inverter – Must be paired with qualifying SolarEdge U650 or U650B optimizers to qualify for Domestic Content Bonus Credit. This item includes domestic content and if used in accordance with the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.

About SolarEdge

SolarEdge is a global leader in optimiser-based solar systems, providing robust inverters, module-level electronics and advanced monitoring tools. Their residential and commercial platforms integrate solar, storage, EV charging and energy management into a unified ecosystem designed for system efficiency and long-term reliability.
