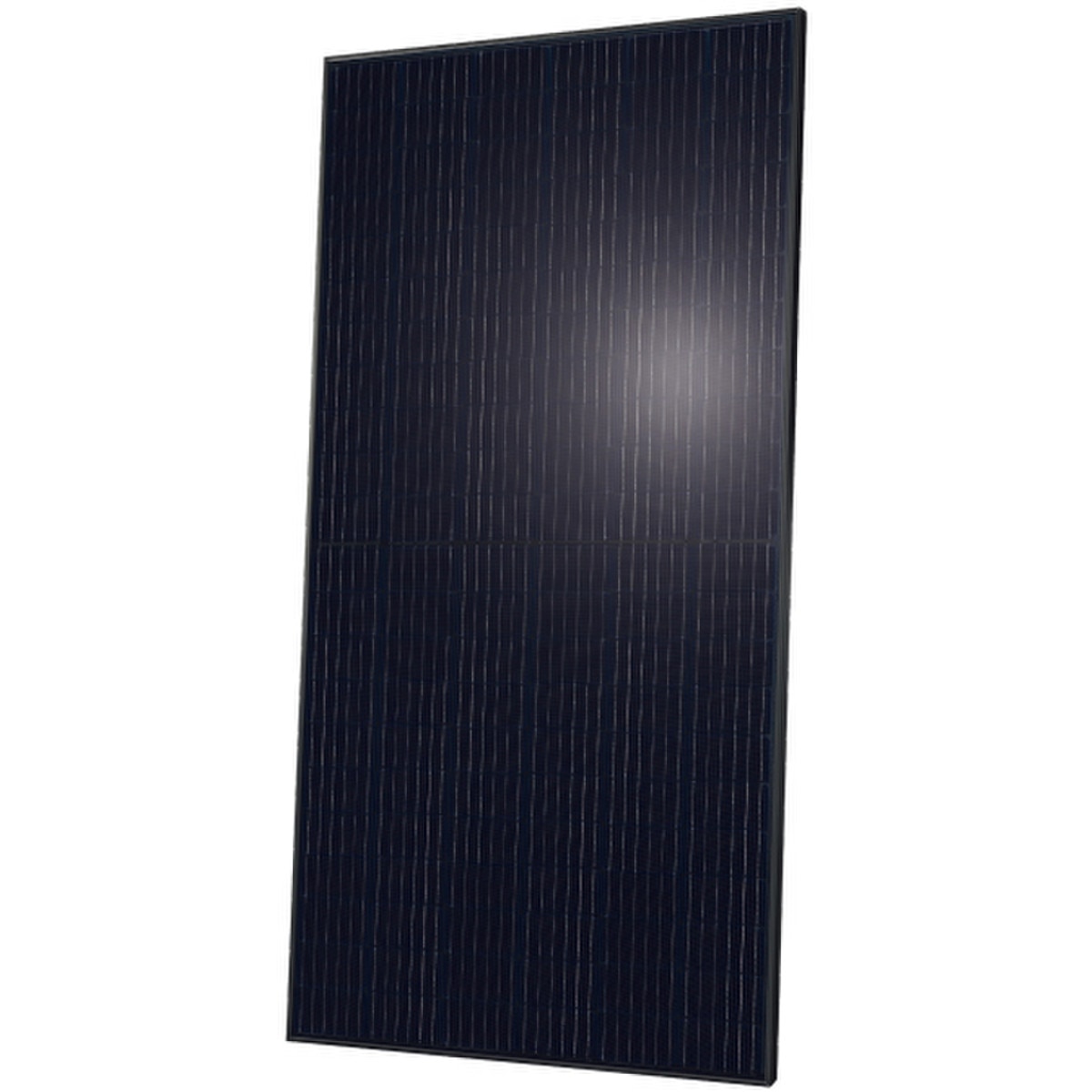

Q Cells Q.PEAK DUO BLK ML-G10.C+ 415W Solar Panel

About This Product

The Q Cells Q.PEAK DUO BLK ML-G10.C+ 415W Solar Panel is a 415W monocrystalline residential solar module built with 132 half-cut Q.ANTUM cells. This model combines a black frame and black backsheet with Q Cells’ Q.ANTUM DUO Z cell layout, providing a clean rooftop appearance while achieving module efficiency up to 21.1%. It is supplied with Stäubli MC4 connectors and is designed for use in standard US residential PV systems.

Who This Product Suits

The Q Cells Q.PEAK DUO BLK ML-G10.C+ 415W is well suited to residential rooftop installations where solid power density and a uniform black appearance are important. Its 415W output makes it practical for new home solar arrays as well as system designs where installers want to achieve the required array capacity with fewer modules than lower-wattage alternatives. System voltage, string sizing, overcurrent protection, racking, grounding and rapid-shutdown requirements should be designed by the installer in accordance with the module documentation, inverter requirements and applicable NEC provisions.

Specifications Explained

The Q Cells module is rated at 415W under standard test conditions and uses 132 half-cut monocrystalline cells. Maximum module efficiency is 21.1%. At STC, the module has an open-circuit voltage (Voc) of approximately 45.4V, maximum-power voltage (Vmpp) of approximately 37.9V, short-circuit current (Isc) of approximately 11.2A and maximum-power current (Impp) of approximately 11.0A. It supports PV systems up to 1000V DC and has a 20A maximum series fuse rating. The power temperature coefficient is -0.34%/°C, indicating how output decreases as cell temperature rises above standard test conditions. The module is UL 61730 certified and uses Stäubli MC4 connectors for its DC connections.

Summary

The Q Cells Q.PEAK DUO BLK ML-G10.C+ 415W is a straightforward residential module for installers looking for 415W output, 132 half-cut monocrystalline cell construction and an all-black rooftop appearance. Q Cells combines 21.1% maximum module efficiency with a 25-year product warranty and 25-year linear performance warranty, making this model a practical option for professionally designed US residential PV systems.

Further Information From The Manufacturer

This product has transitioned from the SKU: HQC-415MLQPG10-BK

QCells Q.PEAK DUO BLK ML G10.C+ 415 W, black frame, black backsheet, 132 Half Cut M6 Mono PERC, with MC4 connectors. Domestic components: junction box, encapsulant, backsheet This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.

This product is supplied with MC4 connectors

About Q Cells

Q Cells is a globally established solar brand operating under Hanwha Solutions, with roots tracing back to Germany and a broad presence across residential, commercial and utility-scale solar markets. The company is known for combining large-scale manufacturing with ongoing research and development.

Q Cells has built a strong reputation in the solar industry for high-efficiency module design, consistent product documentation and long-term bankability. Installers and project developers commonly choose Q Cells panels for dependable performance and established warranty support in the U.S. market.
