Product details
About This Product

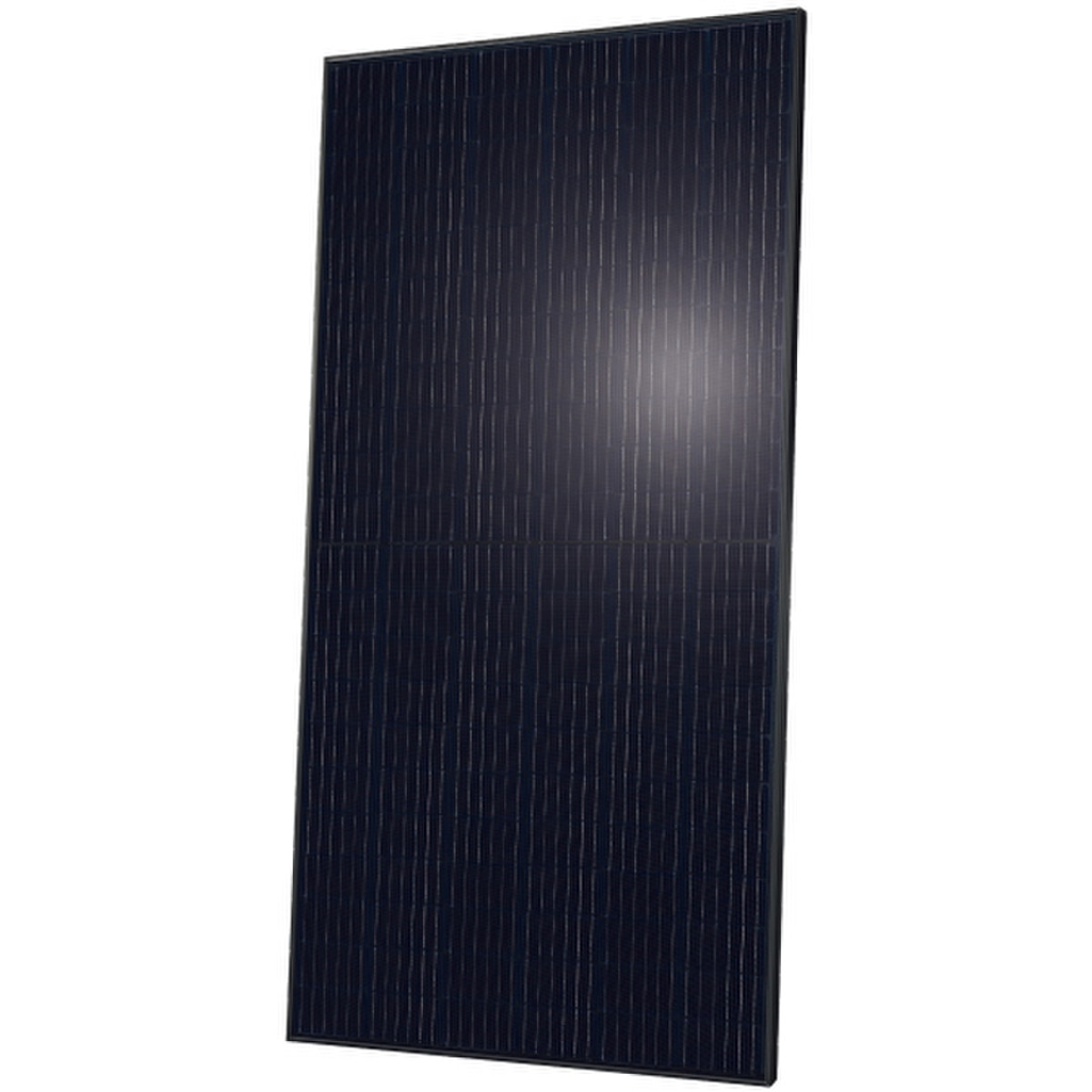

The Q Cells Q.PEAK DUO BLK ML-G10.C+ 410W Solar Panel is a 410W monocrystalline module from the Q.PEAK DUO BLK ML-G10.C+ series. It uses 132 half-cut mono PERC cells and Q Cells’ Q.ANTUM DUO technology to provide reliable power production for residential and light commercial PV systems. The module features a black frame, white backsheet, and factory-fitted MC4 connectors. It is designed for systems with a maximum system voltage of 1000V DC and is backed by a 25-year manufacturer warranty.
Product Explainer Video
Q.ANTUM DUO Z Technology – Zero-Compromise on Power
Who This Product Suits
This Q Cells panel is well suited to residential rooftop installations and light commercial projects requiring a proven 410W module from an established manufacturer. Its conventional module format makes it suitable for new arrays as well as projects where installers need a straightforward module for use with compatible string inverters, microinverters, or DC optimizers. Final string sizing, inverter compatibility, rapid-shutdown requirements, grounding, and overcurrent protection should be confirmed by the system designer in accordance with the NEC and local code requirements.
Specifications Explained
- 410W rated output: Provides 410 watts of nameplate DC power under standard test conditions.
- 132 half-cut monocrystalline cells: The half-cell layout reduces current within individual cell sections and is designed to improve electrical performance and reliability.
- Mono PERC technology: Uses passivated-emitter rear-cell technology as part of Q Cells’ Q.ANTUM DUO platform.
- 1000V DC maximum system voltage: Suitable for appropriately engineered 1000V PV system designs, subject to equipment ratings and NEC requirements.
- MC4 connectors: Supplied with industry-standard MC4 connectors for integration into compatible PV wiring systems.
- Black frame and white backsheet: Combines a dark perimeter frame with a white rear backsheet.
- 25-year manufacturer warranty: Supported by Q Cells’ long-term manufacturer warranty coverage.
Downloads
Summary
The Q Cells Q.PEAK DUO BLK ML-G10.C+ is a practical 410W mono PERC module for residential and light commercial solar installations. Its 132 half-cut cell architecture, 1000V DC system rating, MC4 connectivity, and 25-year manufacturer warranty make it a straightforward option for installers designing code-compliant PV arrays around Q Cells equipment.
Further Information From The Manufacturer
This product has transitioned from the SKU: HQC-410MLQPG10-BK
QCells Q.PEAK DUO BLK ML G10.C+ 410 W, black frame, black backsheet, 132 Half Cut M6 Mono PERC, with MC4 connectors. Domestic components: junction box, encapsulant, backsheet This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.
This product is supplied with MC4 connectors
| Power Output | 410 Watts |
| 132 Cell, Monocrystalline | |
| 32mm Depth, Black Frame, White Backsheet | |
| 1000 Volts Max Voltage | |
| Manufacturer Warranty | 25 Years |
| Shipping Weight | 48.5 lb |
| Shipping Dimensions | 74 x 41.1 x 1.26 in |
About Q Cells
Q Cells is a globally established solar brand operating under Hanwha Solutions, with roots tracing back to Germany and a broad presence across residential, commercial and utility-scale solar markets. The company is known for combining large-scale manufacturing with ongoing research and development.
Q Cells has built a strong reputation in the solar industry for high-efficiency module design, consistent product documentation and long-term bankability. Installers and project developers commonly choose Q Cells panels for dependable performance and established warranty support in the U.S. market.
