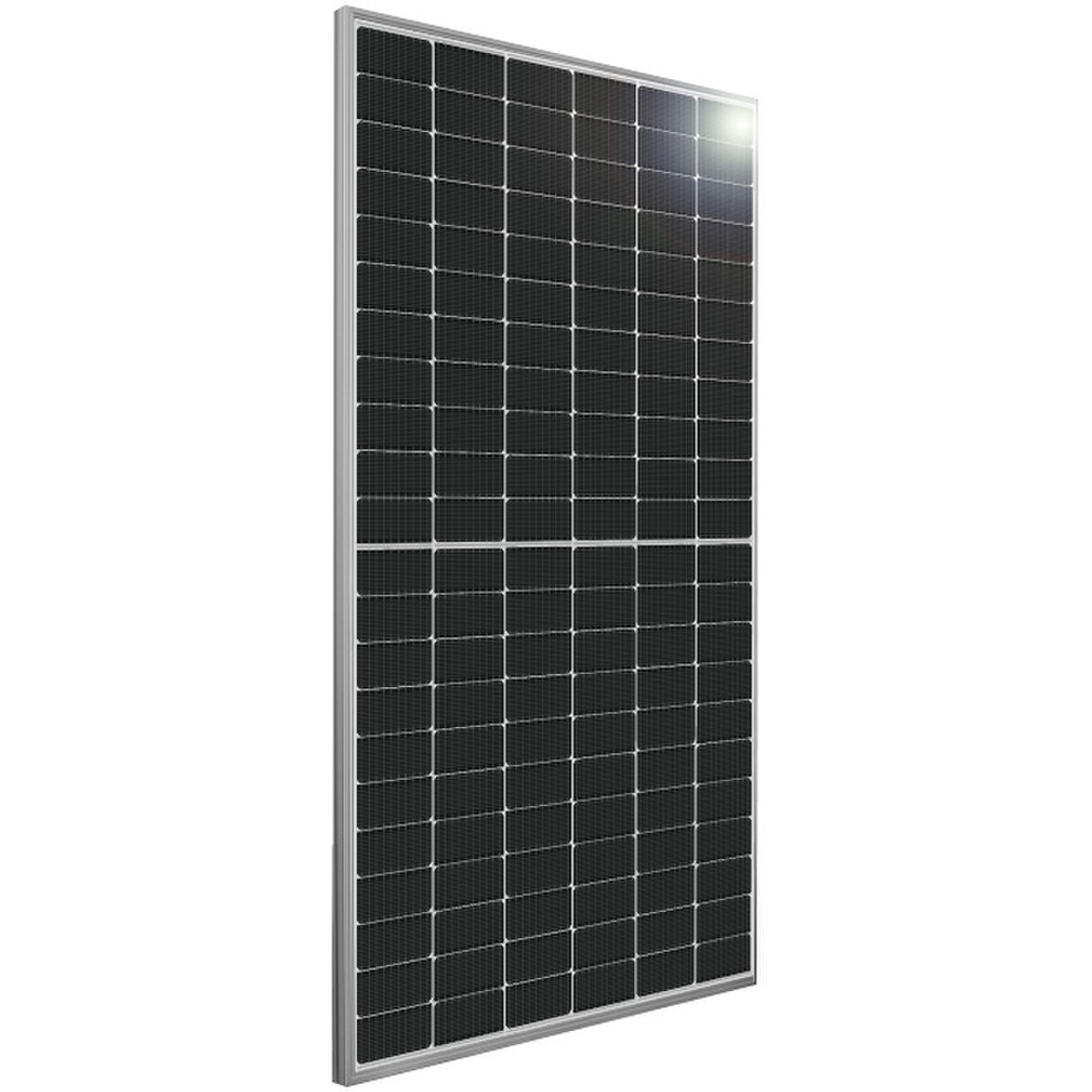

Silfab Solar SIL530XM-DCA2 530W Bifacial Solar Panel

About This Product

The Silfab Solar SIL530XM-DCA2 530W Bifacial Solar Panel is a 530W bifacial photovoltaic module built with 132 half-cut cells, a silver aluminum frame, and a transparent PV backsheet. The bifacial design allows the module to generate power from direct sunlight on the front as well as reflected light reaching the rear of the module when installed in a suitable application. It is rated for systems up to 1500V DC and is supplied with Stäubli MC4-EVO2 connectors. This DCA2 version uses USA-sourced encapsulant and backsheet materials and is identified by the supplier as a domestic-content product that may contribute toward Domestic Content Bonus Credit requirements when the complete project satisfies applicable IRS rules.

Who This Product Suits

Silfab Solar designed this module for installers and system owners looking for a high-output bifacial panel for residential, commercial, or larger solar arrays. Its 530W output is particularly useful where higher wattage per module can reduce the number of modules needed to reach a target DC array size. The 1500V DC system rating also makes it suitable for appropriately engineered commercial and utility-scale string designs. Bifacial production is most useful on installations where the rear of the module receives meaningful reflected or ambient light rather than being completely blocked by the mounting surface.

Specifications Explained

The SIL530XM-DCA2 has a nameplate power rating of 530W and uses a 132 half-cell bifacial architecture. Its transparent backsheet allows light to reach the rear-facing cells so the module can produce additional energy from rear-side irradiance under favorable installation conditions. A 1500V maximum system voltage supports use in appropriately designed high-voltage PV strings, subject to inverter limits, temperature-corrected string voltage calculations, NEC requirements, and other applicable electrical rules. Factory-fitted Stäubli MC4-EVO2 connectors provide a recognized PV connection system for field installation. Silfab Solar provides a 25-year manufacturer warranty for this model.

Summary

The Silfab Solar SIL530XM-DCA2 is a 530W, 132 half-cell bifacial module combining high module output with a transparent backsheet, silver frame, 1500V DC system capability, and Stäubli MC4-EVO2 connectors. It is a practical choice for installers designing higher-power residential or commercial arrays, particularly where the mounting arrangement can make useful rear-side bifacial generation possible. The DCA2 configuration also incorporates specified USA-sourced materials for projects evaluating domestic-content requirements.

Further Information From The Manufacturer

Silfab 530w XM bifacial module DCA2; 132 half cells, silver frame, transparent PV backsheet, 53.1 in, ø 0.22 in (12AWG), EVO2 from Staubli. With USA sourced encapsulant & back sheet. This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.

This product is supplied with MC4-EVO2 connectors

About Silfab Solar

Silfab Solar is a North American module manufacturer known for supplying high-quality solar panels into residential, commercial and light industrial markets. The brand is recognised for its focus on manufacturing consistency, installer-friendly products and strong relevance in the U.S. market.

Silfab panels are often chosen for projects that value domestic supply alignment, dependable build quality and well-supported residential module options. The company has developed a strong reputation among installers looking for premium North American panel supply.
