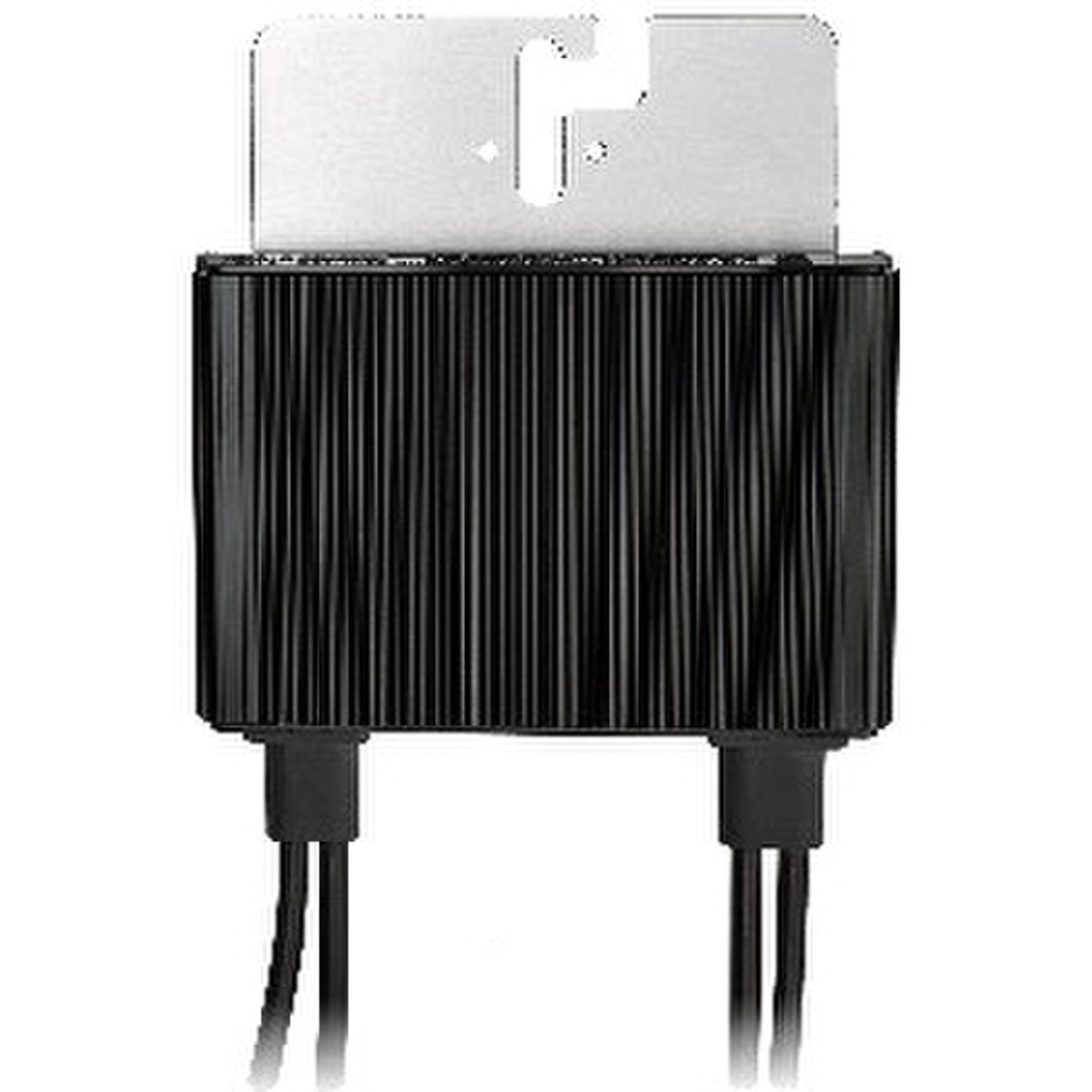

SolarEdge U650 650W Power Optimizer

About This Product

The SolarEdge U650 650W Power Optimizer is a module-level DC power optimizer designed for use with compatible SolarEdge inverter systems in the US market. It supports PV modules up to 650W and provides individual maximum power point tracking at the module level, helping reduce losses caused by module mismatch, partial shading, and differing module operating conditions. This U650 variant is also designed as a US domestic-content-eligible optimizer when incorporated into a qualifying SolarEdge system in accordance with applicable requirements.

Who This Product Suits

The SolarEdge U650 is suited to installers designing compatible SolarEdge residential PV systems using higher-power modules. It is particularly useful where module-level optimization, monitoring, and rapid-shutdown functionality are required. The optimizer must be matched with a compatible SolarEdge inverter and installed using SolarEdge’s specified string lengths, DC loading limits, and system design requirements rather than treated as a universal optimizer.

Specifications Explained

• 650W rated input: Designed for PV modules with a rated DC power of up to 650W.
• 60V maximum input voltage: Supports module Voc up to 60V, with an MPPT operating range of 8-60V DC.
• 15A maximum input current: Supports modern higher-current PV modules, with a specified maximum input short-circuit current of 18.75A.
• High conversion efficiency: Rated at up to 99.5% maximum efficiency and 98.6% weighted efficiency.
• Module-level MPPT: Each connected module is individually optimized rather than relying solely on string-level operating conditions.
• Rapid shutdown: Provides a nominal 1V safety output per optimizer when the SolarEdge inverter is off or the optimizer is disconnected from an operating inverter, and is specified for NEC 2014-2023 photovoltaic rapid-shutdown compliance.
• US system compatibility: Intended for use with designated compatible SolarEdge inverters and must be designed within SolarEdge’s specified optimizer string and inverter loading limits.

Summary

The SolarEdge U650 is a 650W module-level optimizer for compatible SolarEdge PV systems. Its combination of individual MPPT, high efficiency, module-level safety functionality, and support for higher-power modules makes it a practical choice for properly engineered SolarEdge installations. System designers should confirm module electrical characteristics, inverter compatibility, string sizing, and NEC requirements before installation.

Further Information From The Manufacturer

Power Optimizer 650W/15A/60V

MUST BE PURCHASED in system level ratios

with qualifying SolarEdge inverters (-USMNBE78, -USSKBEZ8) – ratio will vary, but is determined by PV array size and inverter watt class within recommended DC to AC limits (typically 1.5x or less)

Domestic Content Optimizer – Must be paired with a qualifying SolarEdge inverter (-USMNBE78, -USSKBEZ8) to qualify for Domestic Content Bonus Credit. This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.
