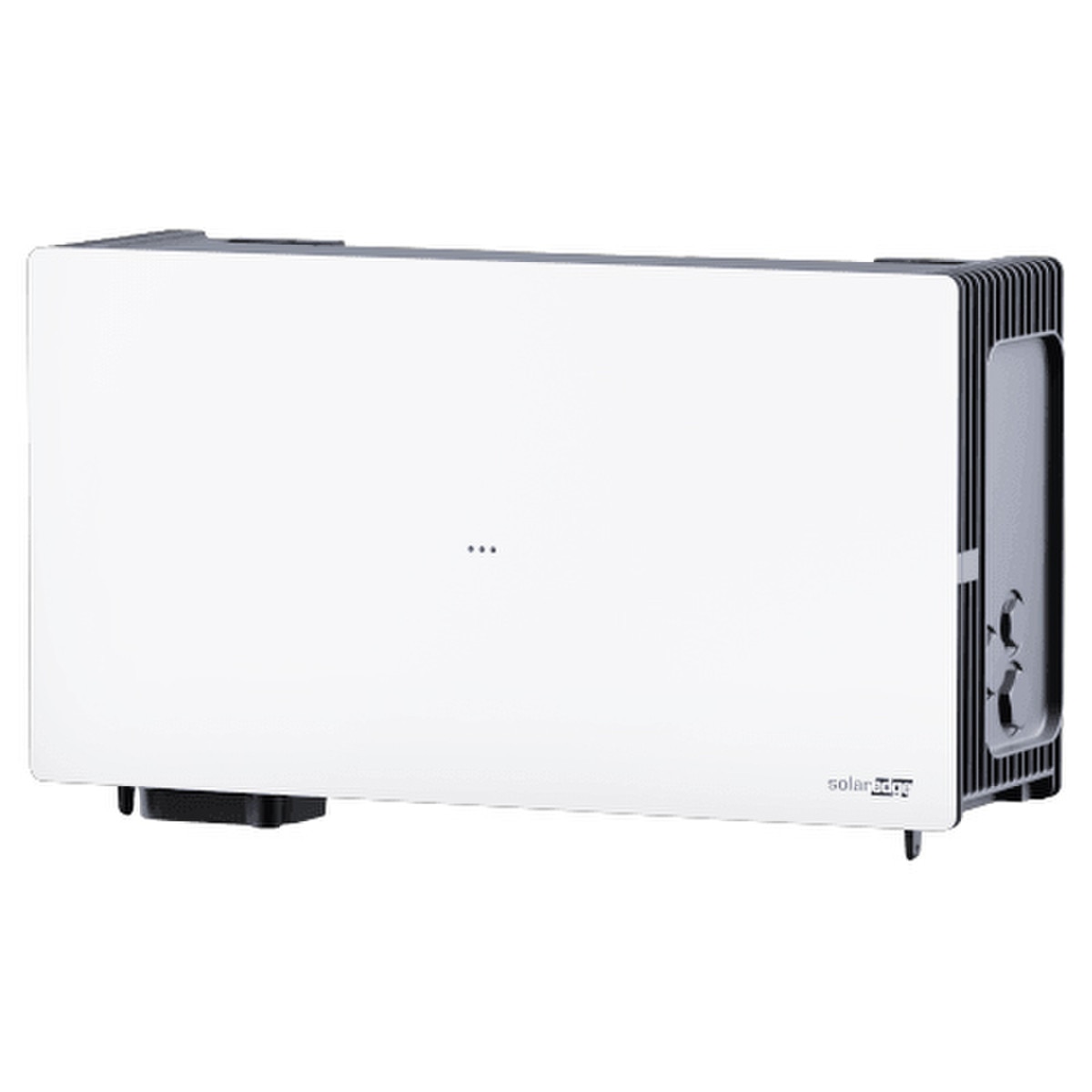

SolarEdge Nexis NX13000T-US 13kW Single-Phase Inverter

About This Product

The SolarEdge Nexis NX13000T-US 13kW Single-Phase Inverter is a residential DC-optimized inverter for the SolarEdge Nexis solar and energy storage platform. This model provides up to 13 kW of AC output at 240V for grid-connected operation and supports both DC- and AC-coupled SolarEdge Nexis battery configurations. It is designed around SolarEdge power optimizers and integrates solar production, storage, monitoring, and optional backup capability within the Nexis ecosystem.

Who This Product Suits

The SolarEdge Nexis NX13000T-US is suited to larger single-phase residential solar installations where module-level optimization, battery integration, or future energy storage is required. It is a practical choice for new SolarEdge Nexis installations as well as projects designed around whole-home energy management. Installers can use the inverter with compatible SolarEdge power optimizers and Nexis battery equipment, with system design, conductor sizing, overcurrent protection, rapid shutdown, and interconnection completed in accordance with the NEC, local utility requirements, and SolarEdge installation instructions.

Specifications Explained

• 13 kW maximum AC output at 240V: Provides up to 13,000 W of grid-connected AC output, making this the highest-output configuration in the Nexis single-phase inverter range.
• 208/240V AC operation: Supports common North American residential and applicable light-commercial service voltages, with maximum output of 11.2 kW at 208V and 13 kW at 240V.
• Battery ready: Supports both DC- and AC-coupled configurations with the SolarEdge Nexis battery platform, allowing storage to be incorporated into new or appropriately designed retrofit systems.
• Backup capability: The Nexis platform can provide selectable backup output up to 14.5 kW when configured with the required compatible SolarEdge Nexis battery and backup equipment.
• Module-level optimization: Designed for use with compatible SolarEdge power optimizers, supporting SolarEdge SafeDC, module-level monitoring, rapid voltage shutdown, and arc-fault protection functions.
• Domestic content configuration: This inverter contains qualifying domestically produced components. Projects seeking applicable US domestic-content treatment must follow current program requirements, including use of qualifying SolarEdge U650 or U650B optimizers where required.
• 10-year manufacturer warranty: Supplied with a 10-year SolarEdge manufacturer warranty.

Summary

The SolarEdge Nexis NX13000T-US combines a 13 kW single-phase grid-connected inverter with SolarEdge’s DC-optimized architecture and Nexis battery integration. It is particularly well suited to larger residential systems that need module-level optimization today with the option for integrated energy storage and backup. For installers already designing around the SolarEdge ecosystem, it provides a high-output foundation for a complete Nexis solar and storage system.

Further Information From The Manufacturer

SolarEdge, Nexis Single Phase inverter, 3.8kW-13kW on-grid, 14.5kW off-grid. DC and AC battery coupling with Solaredge Nexis battery solution Domestic Content Inverter – Must be paired with qualifying SolarEdge U650 or U650B optimizers to qualify for Domestic Content Bonus Credit. This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.

About SolarEdge

SolarEdge is a global leader in optimiser-based solar systems, providing robust inverters, module-level electronics and advanced monitoring tools. Their residential and commercial platforms integrate solar, storage, EV charging and energy management into a unified ecosystem designed for system efficiency and long-term reliability.
