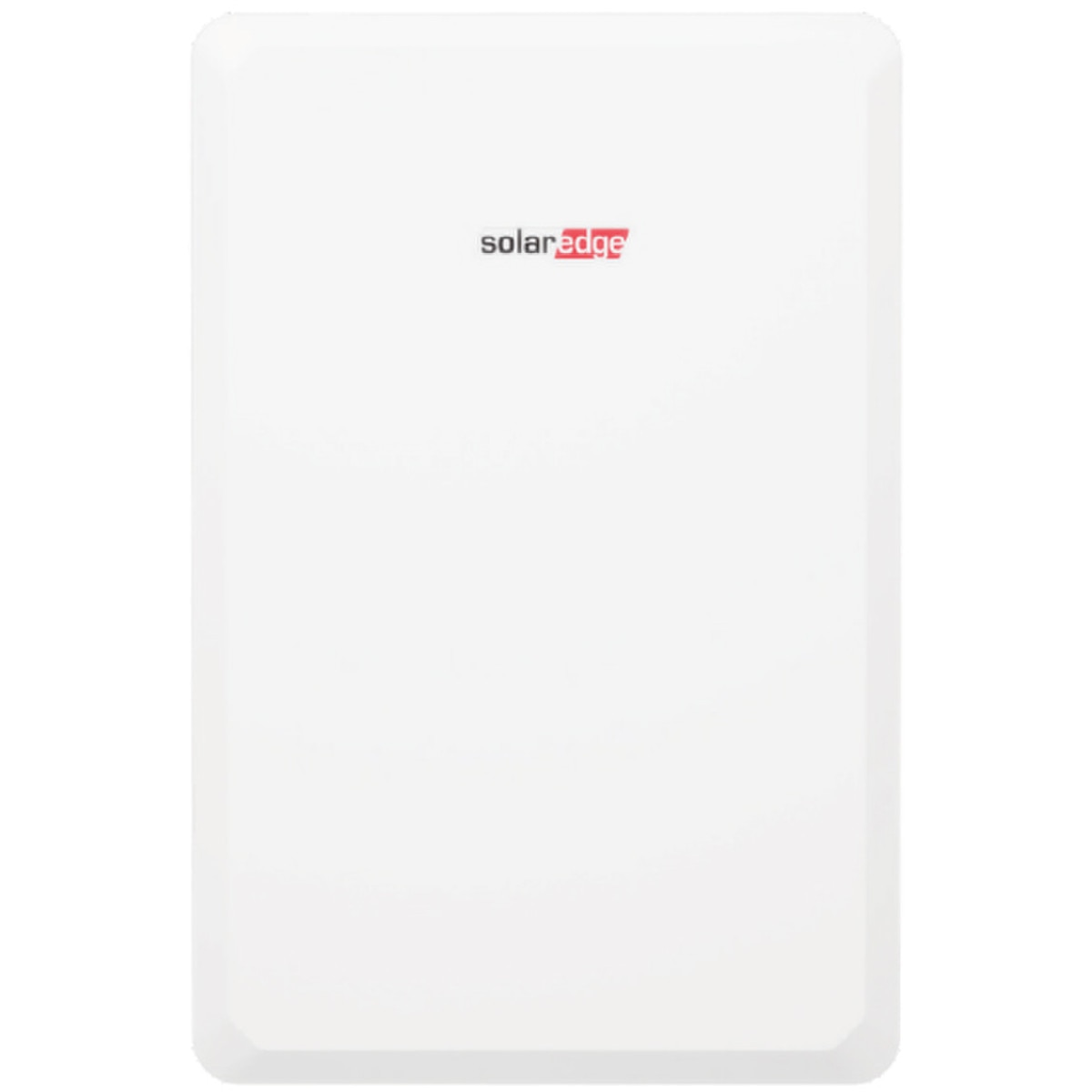

SolarEdge Home Battery 400V 9.7kWh Battery

About This Product

The SolarEdge Home Battery 400V 9.7kWh Battery is a high-voltage, DC-coupled residential energy storage battery designed for use within the SolarEdge Home ecosystem. Model UBAT-10K1PS0B-03 provides 9.7kWh of usable energy at 100% depth of discharge and is designed to store excess solar production for later use, energy management, or backup applications when installed with the required compatible SolarEdge equipment. This U.S.-manufactured version is designated by the “U” prefix and is eligible to contribute toward domestic content requirements when used in a qualifying project.

Who This Product Suits

This SolarEdge battery suits residential installations using a compatible SolarEdge Home inverter where DC-coupled storage is required. It is a practical choice for homeowners looking to increase solar self-consumption, shift stored energy into higher-cost utility periods, or add backup capability to a properly configured SolarEdge system. Up to three compatible SolarEdge Home Batteries can be connected per supported inverter, allowing installers to increase storage capacity for larger residential loads. Backup operation requires compatible SolarEdge backup equipment and must be designed and installed in accordance with applicable NEC, utility, and local code requirements.

Specifications Explained

• Usable energy: 9.7kWh at 100% depth of discharge, representing the energy available for normal system operation.
• Continuous output: 5kW, providing sustained battery power for household loads within the limits of the complete system.
• Peak output: Up to 7.5kW for 10 seconds to help accommodate short-duration load increases.
• Battery voltage: 350-450V DC operating range for high-voltage DC coupling with compatible SolarEdge equipment.
• Round-trip efficiency: Up to 94.5%, reflecting the efficiency of storing and later recovering energy through the battery.
• System expansion: Supports up to three batteries per compatible inverter for increased usable storage capacity.
• Installation: NEMA 3R rated for supported indoor or outdoor installations and UL 9540A tested at the unit level.
• Warranty: 10-year manufacturer warranty with a specified 70% performance level at the end of the warranty period.

Summary

The SolarEdge Home Battery 400V combines 9.7kWh of usable storage with 5kW continuous and 7.5kW short-duration peak output. Its high-voltage DC-coupled architecture is designed to integrate directly with compatible SolarEdge equipment, providing a straightforward storage option for SolarEdge residential systems. With support for multiple batteries, indoor or outdoor installation, and both energy-management and properly configured backup applications, it gives installers a scalable storage solution within the SolarEdge Home platform.

Further Information From The Manufacturer

This product is in the process of transitioning to the SKU(s):

SE-UBAT-10K1PS0B-04

This product has transitioned from the SKU: SE-BAT-10K1PS0B-02

***Closeout Policy Applies To This Item***

SolarEdge Home Battery 400V, 10kWh, Domestic Content Eligible This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit. ***Installer Certification via SE Edge Academy required for battery sales.*** ***This item is not eligible for return/refund***

About SolarEdge

SolarEdge is a global leader in optimiser-based solar systems, providing robust inverters, module-level electronics and advanced monitoring tools. Their residential and commercial platforms integrate solar, storage, EV charging and energy management into a unified ecosystem designed for system efficiency and long-term reliability.
