Product details
About This Product

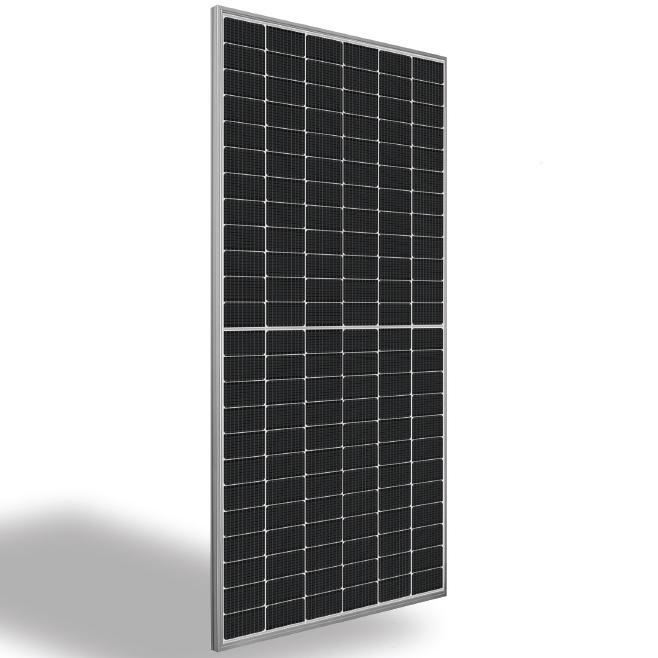

The Silfab Solar SIL580-XMPLUS 580W Bifacial Solar Panel is a high-output photovoltaic module designed for commercial, industrial, and large-scale solar installations. Part of Silfab Solar’s XM+ series, this 580W panel uses 144 half-cut solar cells and a bifacial design to generate electricity from direct sunlight on the front and reflected light reaching the rear. It features a silver aluminum frame, transparent backsheet, and factory-installed Stäubli MC4-EVO2 connectors. With a maximum system voltage rating of 1500V DC, the module is suited to appropriately engineered high-voltage PV arrays.
Who This Product Suits
The Silfab Solar SIL580-XMPLUS is suited to commercial solar contractors, EPC installers, and project developers looking for high-wattage bifacial modules. It is particularly useful for ground-mounted arrays, commercial rooftops, and installations where the mounting arrangement and surrounding surfaces allow reflected sunlight to reach the rear of the module. Its 580W output can help installers achieve a specified DC array capacity using fewer modules than lower-wattage alternatives. Installers should verify structural suitability, inverter compatibility, mounting requirements, and NEC-compliant electrical design before installation.
Specifications Explained
- 580W Rated Output: The module’s front-side power rating under standard test conditions, used when calculating PV array capacity.
- 144 Half-Cut Cells: A half-cell module configuration designed to support efficient current collection and reduce internal resistive losses.
- Bifacial Construction: Allows the rear of the panel to collect reflected and scattered sunlight. Additional energy production depends on installation conditions and rear-side irradiance.
- Transparent Backsheet: Permits light to reach the rear-facing solar cells while providing a protective module construction.
- 1500V DC Maximum System Voltage: Supports appropriately designed high-voltage PV systems, subject to equipment ratings and applicable NEC requirements.
- Stäubli MC4-EVO2 Connectors: Factory-supplied PV connectors for integration with compatible wiring and connection equipment.
- Silver Frame: Provides a rigid mounting structure for approved solar racking systems.
- Warranty Coverage: Supplier-listed coverage includes a 12-year product warranty extendable to 25 years subject to registration and applicable conditions, together with a 30-year linear performance warranty. Warranty eligibility and terms should be confirmed against the manufacturer’s documentation.
Downloads
Summary
The Silfab Solar SIL580-XMPLUS combines 580W rated output, bifacial energy collection, and a 144 half-cell design in a module intended for professional solar installations. Its transparent backsheet, MC4-EVO2 connectors, and 1500V DC system rating make it a practical option for compatible commercial and ground-mounted PV arrays. It is a suitable choice for installers seeking high-output Silfab Solar modules with the potential for additional rear-side energy generation where site conditions support bifacial operation.
Further Information From The Manufacturer
Silfab 580w XM+ bifacial module; 144 half cells, silver frame, transparent PV backsheet, 53.1 in, ø 0.22 in (12AWG), EVO2 from Staubli This product is supplied with MC4-EVO2 connectors.
Specifications
| Power Output | 580 Watts |
| 144 Cell, Bifacial | |
| 35mm Depth, Silver Frame, Transparent Backsheet | |
| 1500 Volts Max Voltage | |
| Manufacturer Warranty | 25 Years |
| Performance Warranty | 12 year extendable to 25 years subject to registration and conditions; 30-year linear performance warranty |
| Shipping Weight | 63 lb |
| Shipping Dimensions | 89.7 x 44.6 x 1.4 in |
About Silfab Solar
Silfab Solar is a North American module manufacturer known for supplying high-quality solar panels into residential, commercial and light industrial markets. The brand is recognised for its focus on manufacturing consistency, installer-friendly products and strong relevance in the U.S. market.
Silfab panels are often chosen for projects that value domestic supply alignment, dependable build quality and well-supported residential module options. The company has developed a strong reputation among installers looking for premium North American panel supply.
