Product details
About This Product

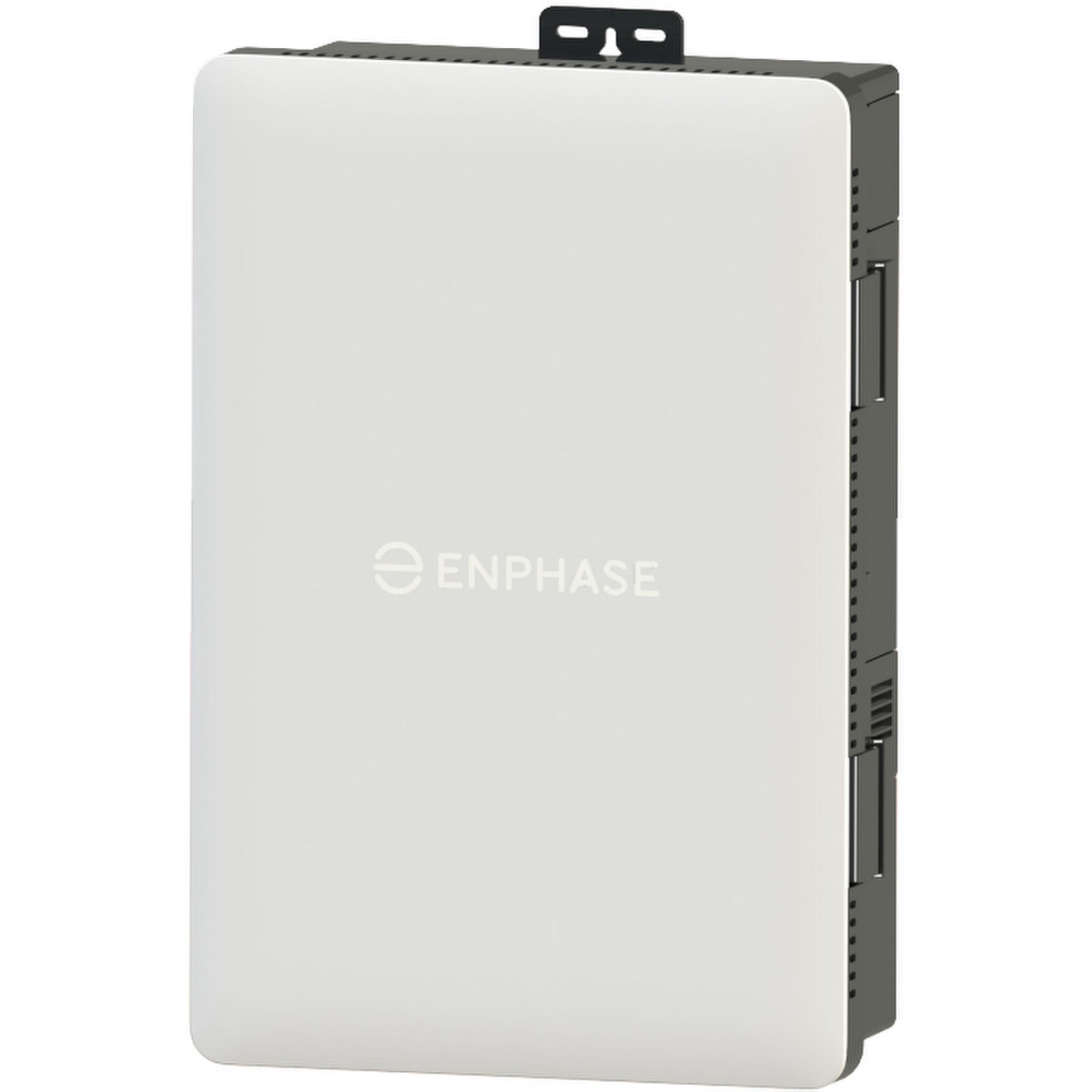

The Enphase IQ Combiner 6C Integrated Gateway and Breaker Combiner is a residential solar and energy system combiner designed to bring key Enphase system connections into one enclosure. Manufacturer model X-IQ-AM1-240-6C-3BRK integrates the Enphase gateway with breaker positions for IQ PV, IQ Battery, IQ EV Charger, and controlled loads. This configuration includes integrated current transformers for PV and battery metering, cellular communications with a data plan, two 20A PV breakers, and one 40A battery breaker.
Product Explainer Video
IQ Combiner 6C- Tips for Installing
Who This Product Suits
The Enphase IQ Combiner 6C is suited to residential Enphase installations where the installer needs a centralized connection and communications point for an IQ solar and energy system. It is particularly useful for projects incorporating Enphase microinverters with IQ Battery equipment, while also providing provisions for an IQ EV Charger and controlled loads. The integrated gateway, metering CTs, cellular connectivity, and supplied breakers reduce the number of separate components that need to be installed and coordinated.
Specifications Explained
- Model: X-IQ-AM1-240-6C-3BRK.
- Integrated gateway: Provides the communications and monitoring interface used by compatible Enphase system equipment.
- Integrated metering: Includes CTs for PV and battery metering, helping installers consolidate system monitoring hardware within the combiner.
- Breaker provisions: Provides breaker spaces for IQ PV, IQ Battery, IQ EV Charger, and controlled-load circuits.
- Included breakers: Supplied with two 20A PV breakers and one 40A battery breaker.
- Cellular communications: Includes an integrated cellular modem with data plan for supported system communications.
- Manufacturer warranty: Backed by a 15-year manufacturer warranty.
Final circuit configuration, conductor sizing, overcurrent protection, grounding, and installation must be completed in accordance with the applicable NEC requirements, local electrical codes, Enphase installation instructions, and utility requirements.
Downloads
Summary
The Enphase IQ Combiner 6C combines system communications, PV and battery metering, breaker positions, cellular connectivity, and included PV and battery breakers in one purpose-built enclosure. For compatible Enphase residential installations, it provides installers with a practical central point for integrating solar, battery, EV charging, and controlled-load equipment while keeping the system architecture organized.
Further Information From The Manufacturer
The IQ Combiner 6C has an integrated gateway, breaker spaces for IQ PV, IQ Battery, IQ EV Charger, and controlled loads. It includes integrated CTs for PV/Battery metering, a cell modem with data pack, 2x 20A PV + 1x 40A Battery breakers.
| Manufacturer Warranty | 15 Years |
| Shipping Weight | 54.4 lb |
| Shipping Dimensions | 33 x 22 x 11 in |
About Enphase
Enphase is a global leader in microinverters and fully integrated solar-plus-storage ecosystems. Its U.S. product lineup includes microinverters, batteries, EV charging and advanced monitoring through the Enphase platform.
The brand is widely used in residential solar projects where module-level monitoring, flexible array design and strong installer support are priorities. Enphase systems are especially common in projects that value visibility, expandability and straightforward serviceability.
