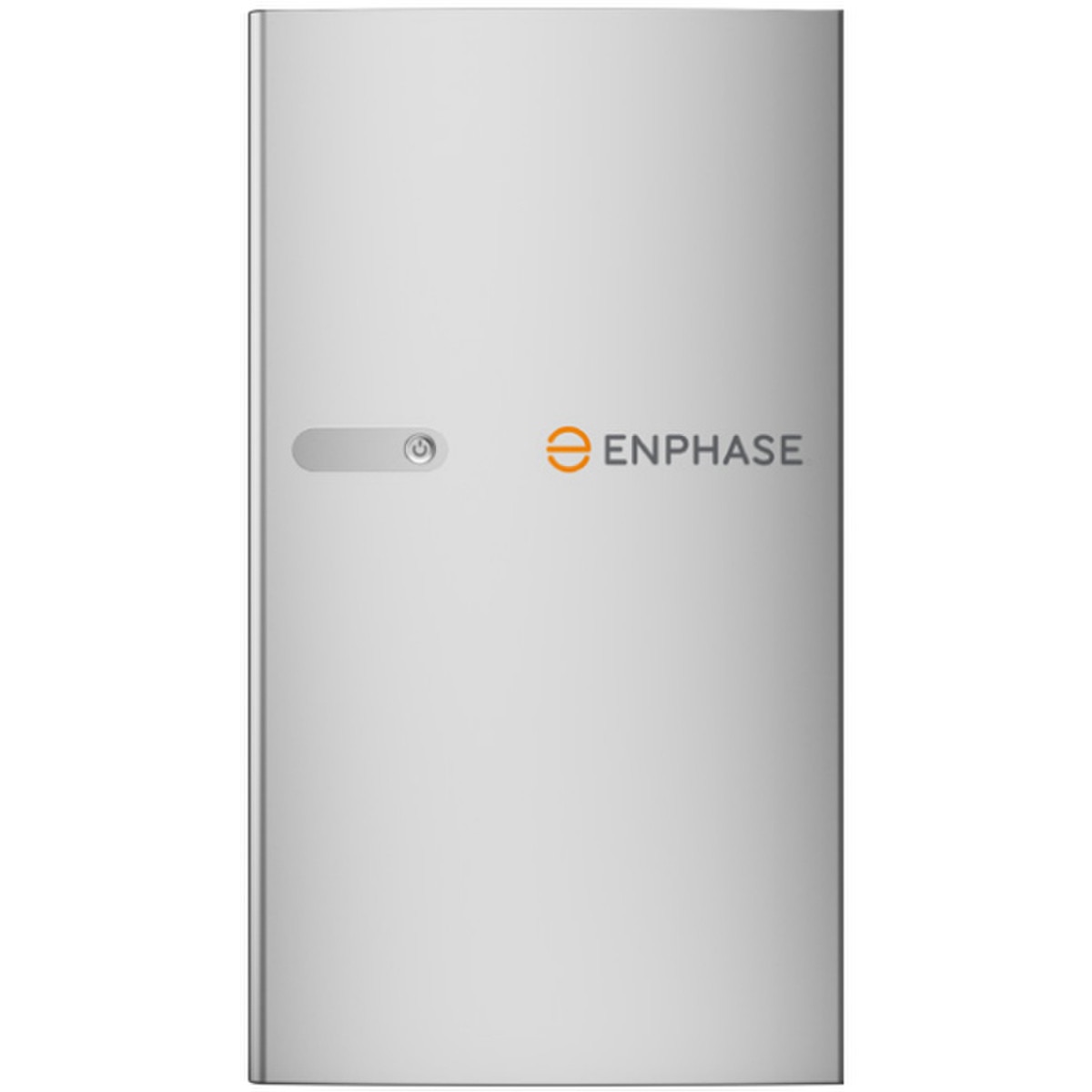

Enphase IQ Battery 5P 5.0kWh AC Coupled Battery

About This Product

The Enphase IQ Battery 5P 5.0kWh AC Coupled Battery is a modular residential energy storage battery designed for the Enphase Energy System in North America. This domestic-content version uses the manufacturer model IQBATTERY-5P-1P-NA-DOM and provides 5.0 kWh of usable energy storage. It is an AC-coupled design with six integrated grid-forming IQ Microinverters, allowing the battery to connect on the AC side of the electrical system rather than requiring a separate battery inverter. This kit includes one IQ Battery 5P, cover kit, wall-mount bracket, and top shield.

Who This Product Suits

The Enphase IQ Battery 5P is suited to residential Enphase installations requiring modular energy storage for solar self-consumption, energy management, or backup applications. Its AC-coupled architecture makes it suitable for new Enphase systems as well as compatible retrofit applications where an installer wants to add storage on the AC side. Multiple IQ Battery 5P units can be combined where greater storage capacity or output power is required. Backup operation requires the appropriate compatible Enphase system equipment, including an IQ System Controller, with the complete installation designed and commissioned in accordance with Enphase requirements and applicable NEC requirements.

Specifications Explained

• Usable energy: 5.0 kWh, providing the full stated energy capacity for system operation.
• Battery chemistry: Lithium iron phosphate (LFP), a chemistry commonly used for stationary energy storage.
• AC-coupled architecture: Six integrated grid-forming IQ Microinverters convert battery DC power to AC within the battery system.
• Continuous output: Up to 3.84 kVA at 240 VAC, with a rated output current of 16 A.
• Short-duration output: Up to 7.68 kVA for 3 seconds and 6.14 kVA for 10 seconds, supporting short startup loads when operating in the appropriate backup configuration.
• Electrical configuration: Single-phase, 60 Hz design for North American applications.
• Efficiency: 90% AC round-trip efficiency at the specified test condition.
• Warranty: Enphase provides a 15-year limited warranty, subject to applicable warranty terms and cycle limitations.
• Domestic-content SKU: IQBATTERY-5P-1P-NA-DOM is the U.S. domestic-content version of the IQ Battery 5P.

Summary

The Enphase IQ Battery 5P combines 5.0 kWh of usable LFP storage with integrated grid-forming microinverters in a modular AC-coupled battery platform. Its 3.84 kVA continuous output, short-duration surge capability, single-phase 240 VAC architecture, and compatibility with the wider Enphase Energy System make it a practical option for residential storage and properly configured backup systems. This DOM model is specifically the domestic-content version intended for the U.S. market.

Further Information From The Manufacturer

This product has transitioned from the SKU: EN-IQBATTERY-5P-1P-NA-DOM-2545 Enphase : EN-IQBATTERY-5P-1P-NA-DOM-V1

IQ Battery 5P Kit Assembly for shipment to customer. Includes one IQ Battery 5P battery, one cover kit and wall mount bracket with top-shield. Made in USA. This item includes 56.8% domestic content contribution and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.

About Enphase

Enphase is a global leader in microinverters and fully integrated solar-plus-storage ecosystems. Its U.S. product lineup includes microinverters, batteries, EV charging and advanced monitoring through the Enphase platform.

The brand is widely used in residential solar projects where module-level monitoring, flexible array design and strong installer support are priorities. Enphase systems are especially common in projects that value visibility, expandability and straightforward serviceability.
