Product details
About This Product

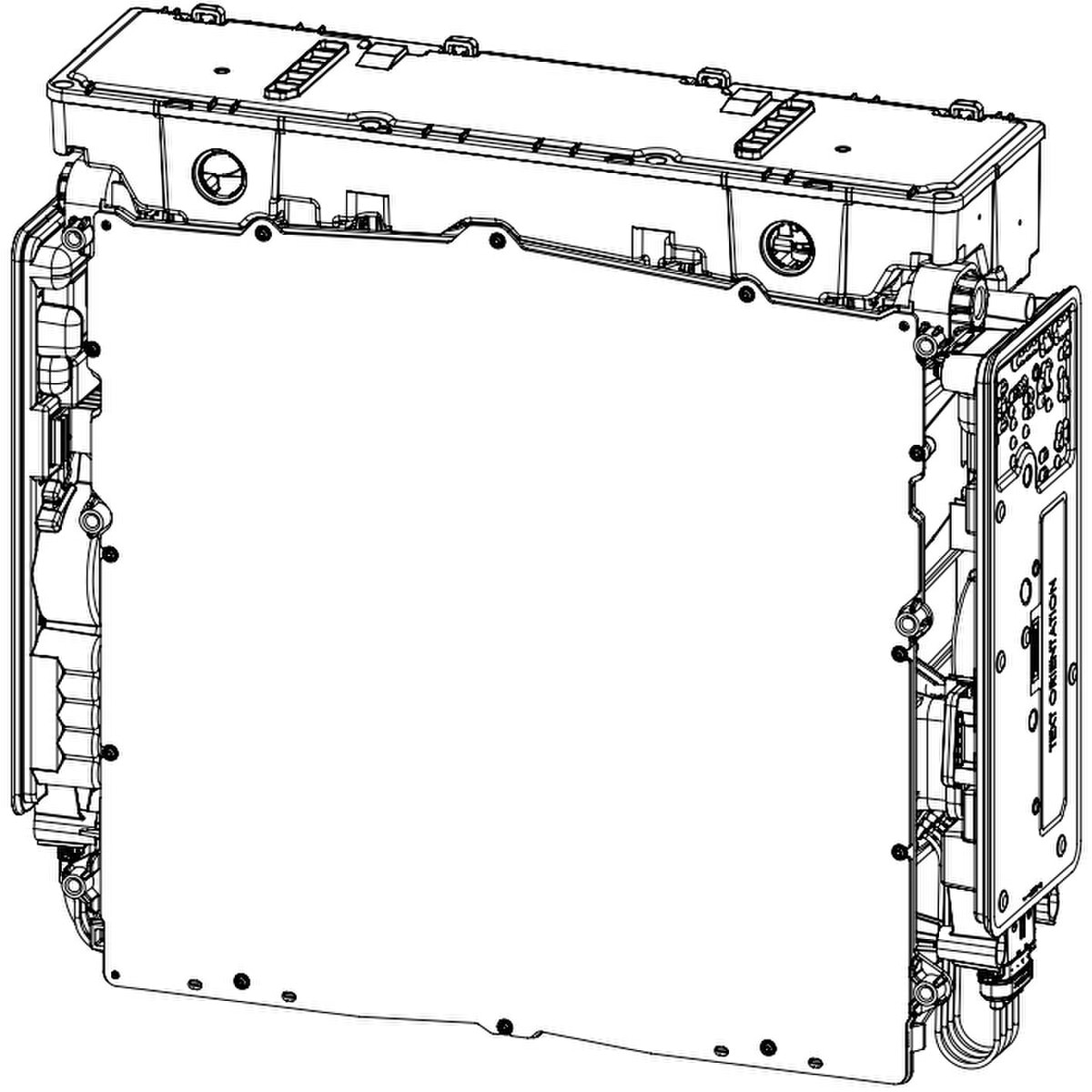

The Enphase IQ Battery 10C 5kWh Battery Module is a 5 kWh battery unit designed as a building block of the Enphase IQ Battery 10C energy storage system. This unit provides 5,000 W of power output and is supplied with one battery mounting bracket. It is intended for use within the specified Enphase battery system rather than as a standalone battery installation.
For a complete IQ Battery 10C system, two of these 5 kWh battery modules are used together with the required Enphase ID cover. The ID cover is a separate component and is not included with this battery module.
Product Explainer Video
Introducing the Enphase Energy IQ Battery 10C
Who This Product Suits
This Enphase battery module suits residential solar and energy-storage installations being built around the Enphase IQ Battery 10C platform. It is appropriate for installers assembling a complete 10C battery system where the individual 5 kWh battery modules and associated system components are ordered separately.
System design, equipment compatibility, overcurrent protection, disconnecting means, conductor sizing, and installation must follow Enphase requirements and applicable NEC and local code requirements.
Specifications Explained
- Battery capacity: 5 kWh per battery unit, allowing two modules to form the battery portion of an IQ Battery 10C system.
- Power output: Rated at 5,000 W, providing 5 kW of power output from each specified battery unit.
- System configuration: A complete IQ Battery 10C system requires two B05-C01-US00-1-3 battery units plus the specified Enphase ID cover.
- Mounting hardware: One mounting bracket is included with this battery unit.
- Certification: The unit is supplied as UL-certified equipment for use in the US market when installed in its approved system configuration.
Downloads
Summary
The Enphase IQ Battery 10C 5 kWh battery module is a system component for installers building an Enphase IQ Battery 10C energy-storage installation. Each module provides 5 kWh of battery capacity and 5 kW of rated power output. Two modules are required for the corresponding IQ Battery 10C system, along with the separately supplied ID cover and other required Enphase system equipment.
Further Information From The Manufacturer
5 kWh battery unit – includes ONE 5 kWh battery unit with one mounting bracket. Without ID cover (must be ordered SEPARATELY – SKU: EN-B10C-NC-0708-O) Each IQBATTERY-10C-1P-NA System MUST include: (2) EN-B05-C01-US00-1-3 (1) EN-B10C-NC-0708-O
| UL Certificate | |
| Power Output | 5000 Watts |
| Shipping Weight | 164.5 lb |
| Shipping Dimensions | 30 x 28 x 10.5 in |
About Enphase
Enphase is a global leader in microinverters and fully integrated solar-plus-storage ecosystems. Its U.S. product lineup includes microinverters, batteries, EV charging and advanced monitoring through the Enphase platform.
The brand is widely used in residential solar projects where module-level monitoring, flexible array design and strong installer support are priorities. Enphase systems are especially common in projects that value visibility, expandability and straightforward serviceability.
